Road Disc

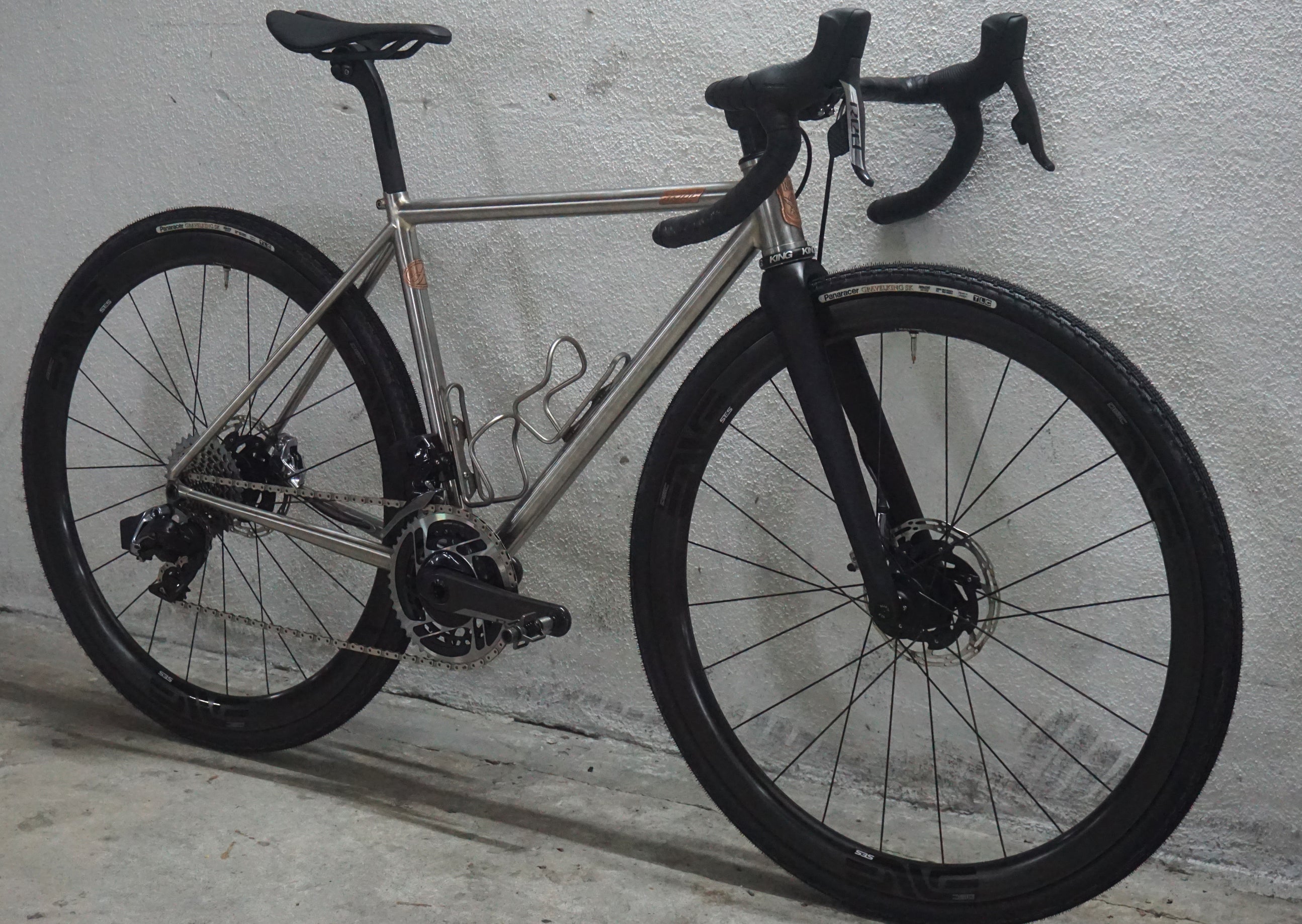

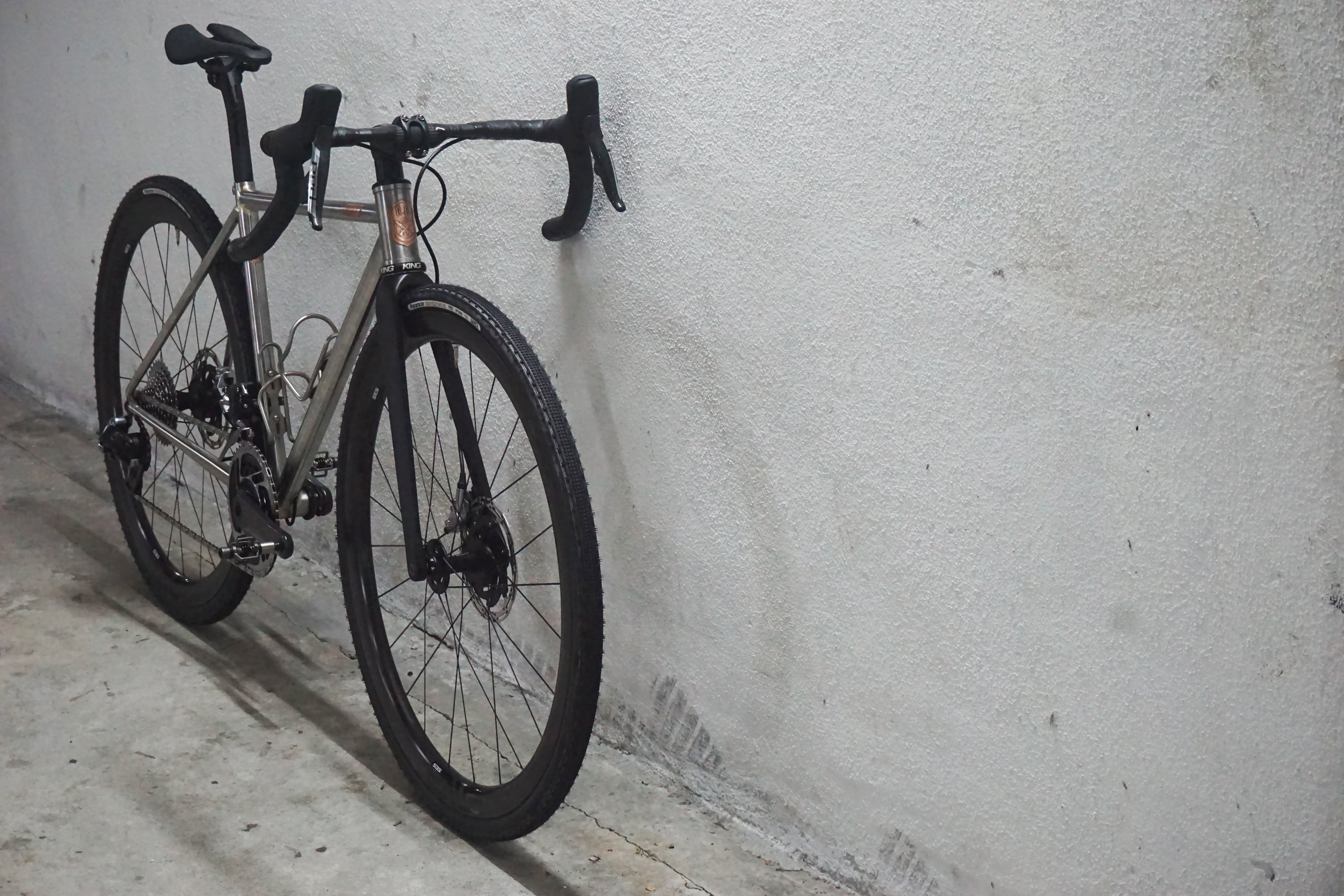

The FEZZ road disc model, meticulously crafted. These frames are designed with the riders body geometry and needs in mind. Putting them into a frame built with some of the best stainless steel tubing the bicycle industry has to offer. The frames are painstakingly constructed by skilled hands.

The stainless steel tubing is chosen for their exceptional strength, durability, and ride quality. The result is a bicycle that effortlessly absorbs road vibrations while providing optimal responsiveness and stability.

The FEZZ road disc comes standard with tyre clearance up to 700x35c. Giving more capability to your ride, opens new possibility to your route options and comfort over those rough roads. Our in house designed 3D printed UDH dropouts offer a classic touch to modern bicycle standards. Printed from 316 stainless steel, these dropouts are designed to have a beautiful blend of strength, lightweight, reliability and aesthetics.

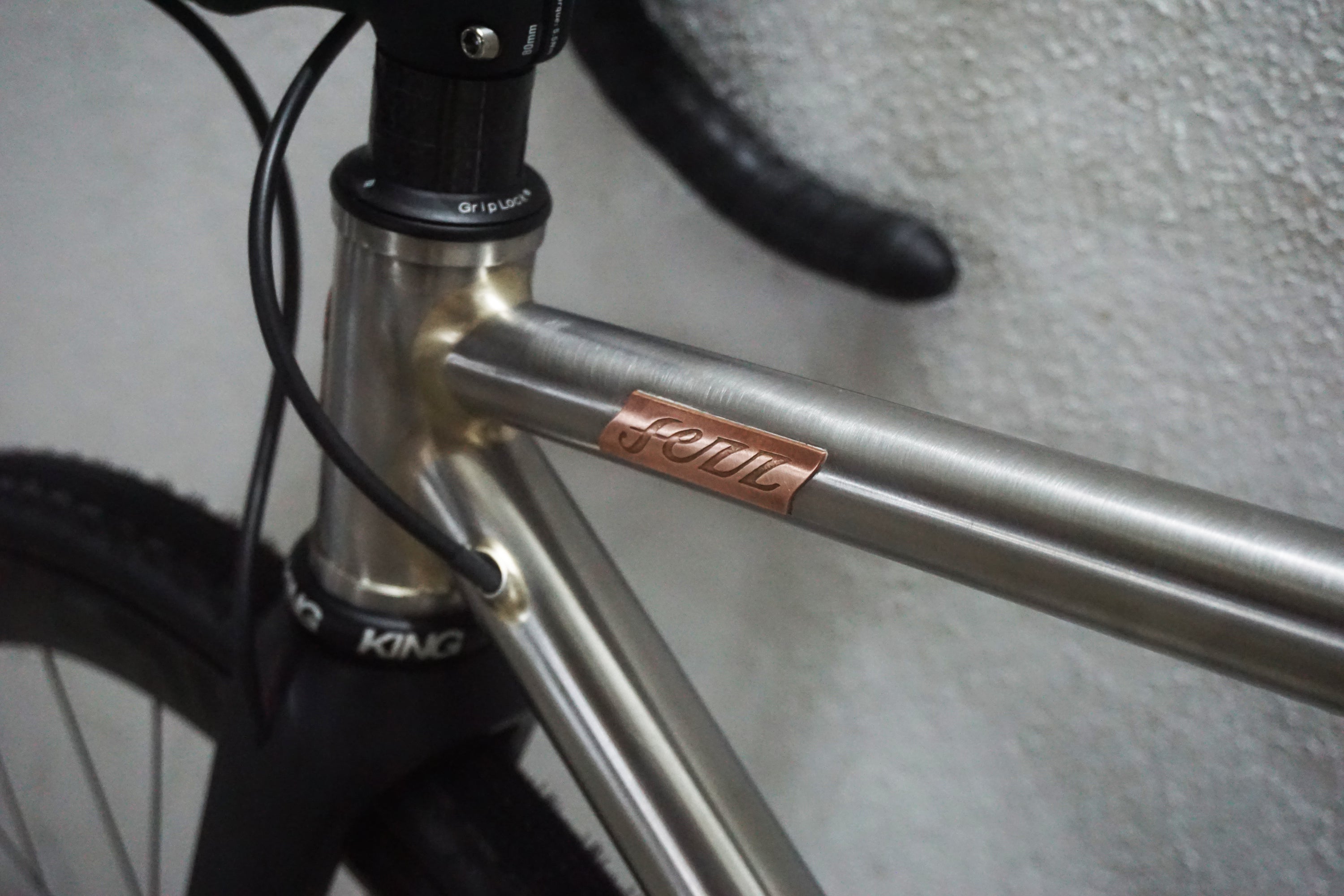

The method of joining is fillet brazing. Stainless steel is brazed with rod with certain percentages of silver and painstakingly sculpted to achieve a seamless smooth connection of every tube joint. The fillets can be re-polished to their  original lustre or left to patina to produce unique natural patterns on its surface adding to their ascetic. Leaving these frames raw shows off their fillets in all their glory.

We offer a range of optional extras for the road disc model so you can customise the frame to your needs.

Road Disc Frameset

  • Custom Geometry
  • 700c x 35c
  • Reynolds 931 Stainless Steel Tubing
  • 44 id Headtube (ZS44 1/18 + EC 44 1.5 spec headset not included)

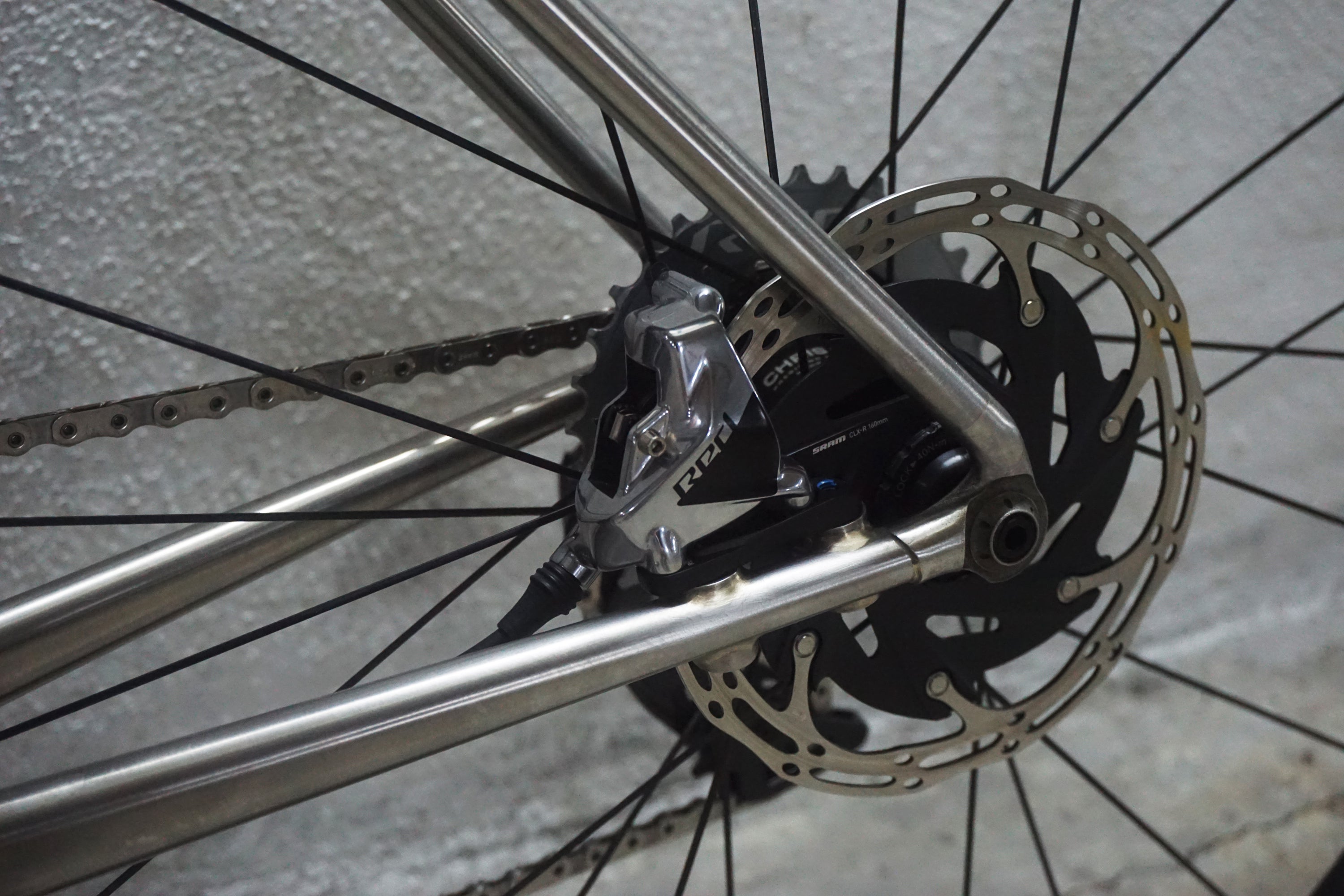

  • FEZZ 3D printed Flat Mount Dropouts 142x12 TA (UDH)
  • OEM Carbon fork
  • External Gear Routing x2
  • Internal Brake Routing (DT only)
  • External Clamp (31.8mm not included)
  • 27.2 Seatpost
  • FD Clamp (28.6 not included)
  • Badge logos
  • Brushed Finish

Starting price - RM 16800

Options

  • Integrated Seat post clamp - RM 150
  • Internal Cable Downtube Routing - RM 250
  • Internal Cable Chainstay Routing - RM 200
  • Stainless Steel eyelets (Pair) - RM 80
  • T47 Stainless steel BB - RM 900
  • SnS Couplers TT+DT - RM 4800
  • Gloss Finish - RM 250
  • Metallic Paint - RM 150
  • Painted Logos - RM 200
  • ISP  (including Topper) - RM 4500
  • Custom steel fork : Starting price - RM 2500
  • Semi/Fully integrated cabling (Electronic Wireless Setup only) - RM 1800
