All Road Disc
The bike we believe everyone should own. Designed for the modern cyclist, with the capability to take gravel tyres from 650bx2.0 to 700x40c and road tyres from 700cx32c. Our all road frame is engineered to excel in a wide range of terrains. From smooth city streets to rugged off-road trails, this frame delivers exceptional performance and stability, allowing you to conquer any road you choose.
Crafted from high-quality materials, our all road frame is built to last. With a focus on durability and reliability, we use the best stainless steel tubing we can get our hands on to craft a frame with the strength and resilience that can withstand the rigors of intense riding conditions.

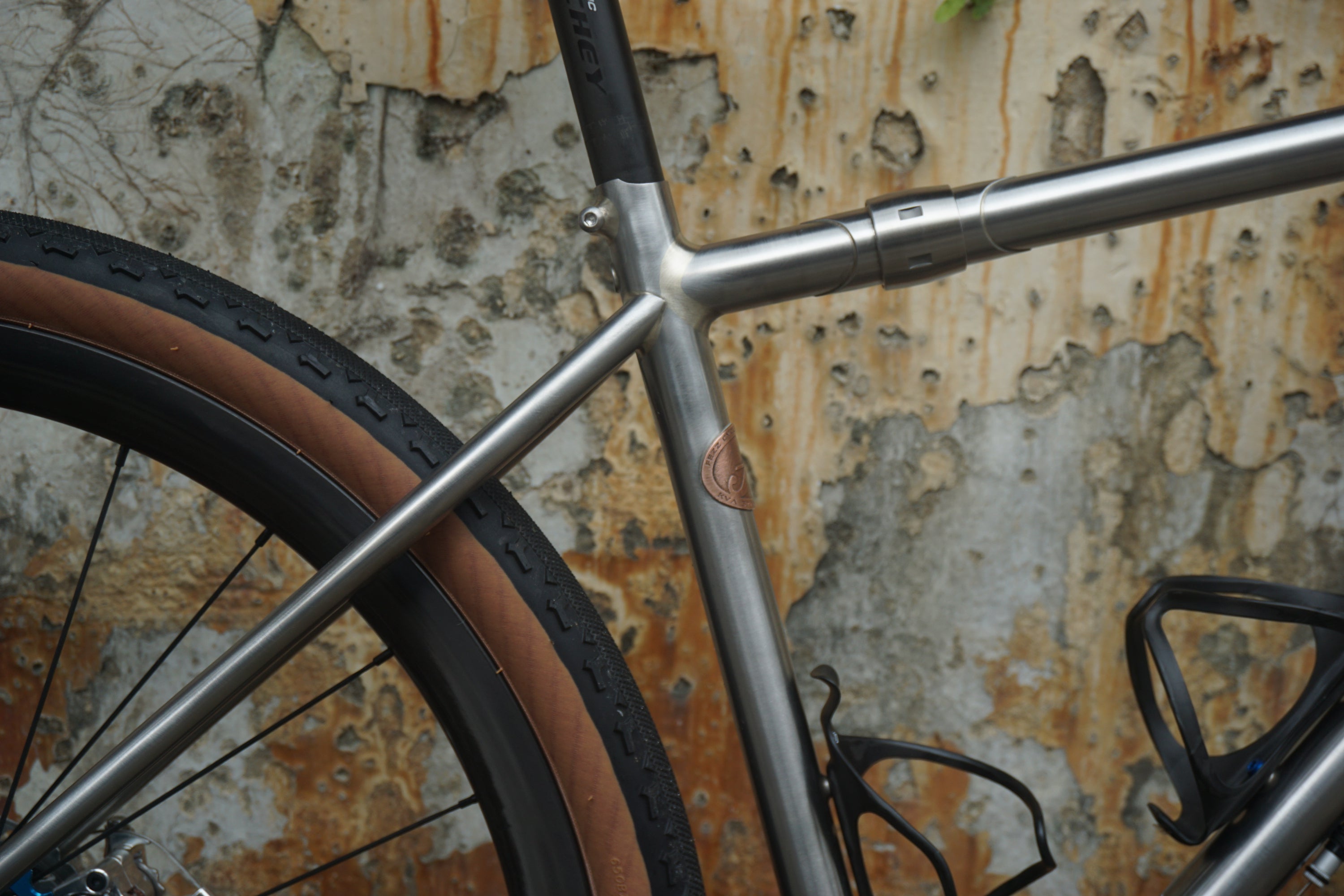

The method of joining is fillet brazing. Stainless steel is brazed with rod with certain percentages of silver and painstakingly sculpted to achieve a seamless smooth connection of every tube joint. The fillets can be re-polished to their original lustre or left to patina to produce unique natural patterns on its surface adding to their ascetic. Leaving these frames raw shows off their fillets in all their glory.
Our All-Road model is available with optional extras to enhance your build.
The geometry of the frame is developed with our expertise along with the riders body geometry and needs. Whether you like Audax, Touring, Fast Gravel or Bike Packing. The Fezz All-Road can be designed for a purpose and keep you comfortable while doing it.
All-Road Disc Frameset
- Custom Geometry
- Reynolds 931 Stainless Steel Tubing
- 700c x 40c, 650b x 50
- 44 id Headtube (ZS44 1/18 + EC 44 1.5 spec headset not included)

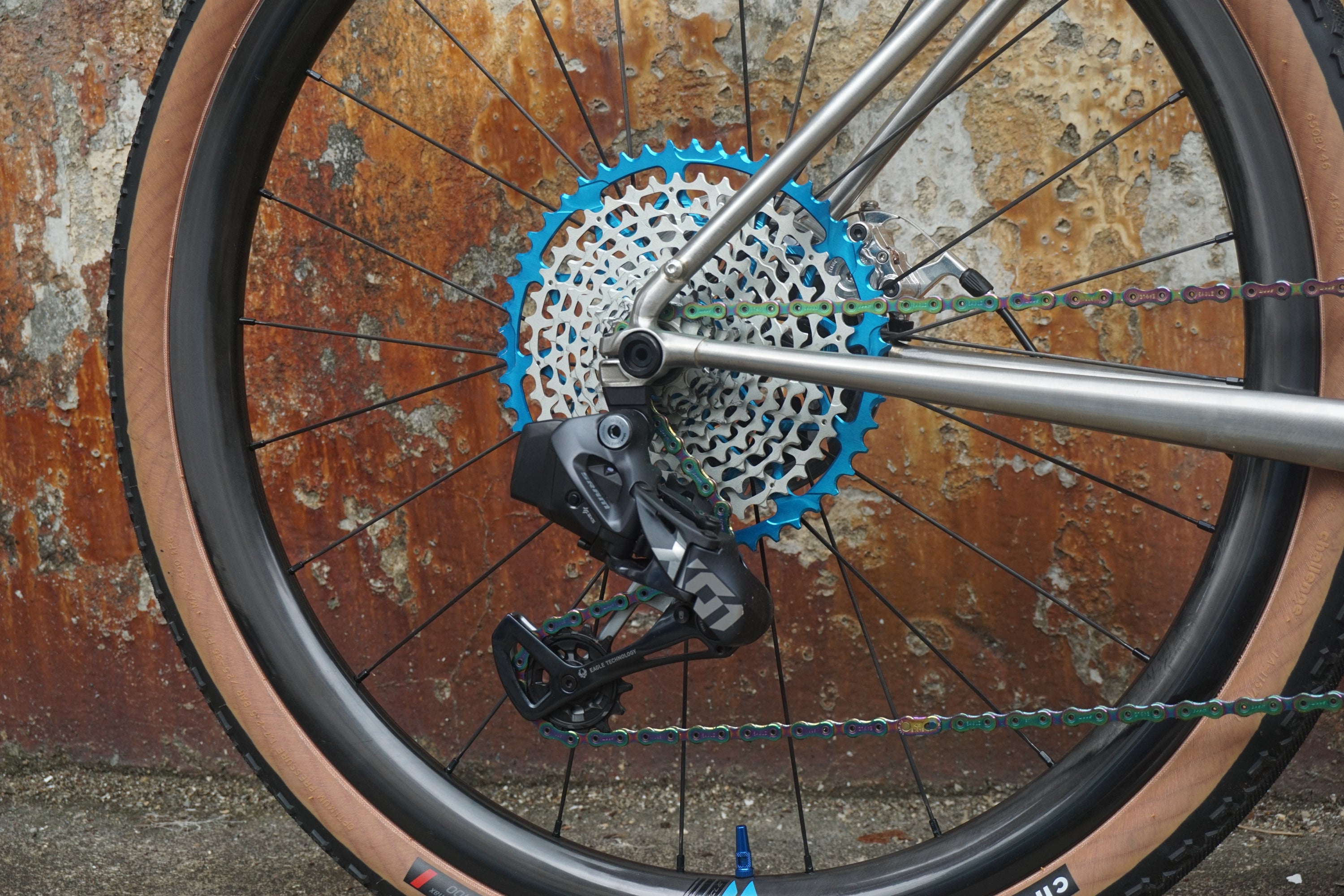

- Fezz 3D printed Flat Mount Dropouts 142x12 TA (UDH)
- OEM Carbon fork
- External Gear Routing x2
- Internal Brake Routing (DT only)
- External Clamp (31.8mm not included)
- 27.2 Seatpost
- FD Clamp (28.6 not included)
- Badge logos
- 1 Colour Solid Paint - Matte Finish
Starting price - RM 16800
Options
- Integrated Seat post clamp - RM150
- Internal Cable Downtube Routing - RM 250
- Internal Cable Chainstay Routing (Stainless Steel Only) - RM 200
- Stainless Steel eyelets (Pair) - RM 80
- T47 BB - RM 500
- SnS Couplers TT+DT - RM 4800
- Gloss Finish - RM 250
- Metallic Paint - RM150
- Painted Logos - RM200
- Dropper post port (seattube) - RM120
